ME 370 — Mechanical Design
University of Illinois Urbana-Champaign, May 2026
Team 17: Matthew Figula, Tommy Boetto, Diego Urenda, Manav Chopda

Project Dawnstar II — nicknamed "Peanut the White Elephant" — is a single-motor autonomous walker designed to transport a payload across alien terrain. The creative brief: an elephant crossing an exoplanet in search of a single peanut. Beneath the theme is a fully mechanical drivetrain that coordinates locomotion and payload handling from one 12 V brushed DC motor with no electrical sequencing whatsoever.

My contributions spanned the frame and leg geometry design, gear-train design and ratio selection, and all eleven Fusion 360 engineering drawings produced to ASME Y14.5M-2018. I also maintained the master CAD assembly throughout the project.

The assembled Dawnstar II walker — The assembled walker — Team 17's "Peanut the White Elephant."

Project Video

Goal & Specifications

Design and build a single-motor autonomous walker that picks up a payload, traverses a multi-terrain course, and releases the payload — all from a single toggle-switch input, with no further user interaction.

Payload: carry one object ≥10 cm³, non-adhesive and non-magnetic, from a loading zone to an unloading zone
Envelope: fit within 18 × 18 × 30 cm; the final walker measures ~17 × 14 × 14 cm assembled
Power unit: 12 V brushed DC motor, eight 1.2 V NiMH cells, toggle switch — single user input runs the complete pickup-traverse-release cycle
Budget: ≤$60 materials; final build came in at $42.11
Constraints: no Jansen mechanisms, no powered wheels; must carry a clear visual theme

Key Contributions & Skills

Mechanical Design: six legs implemented as four-bar linkages, three per side, phased 120° apart to guarantee static stability at every crank angle; angled laser-cut plywood chassis
Drivetrain: single-stage 3:1 spur-gear reduction (12-tooth pinion → 36-tooth gear) with three idler gears for packaging efficiency and torque-ripple smoothing
Dispensing Mechanism: dual Geneva drive converting continuous crank rotation into intermittent indexed motion — timing payload pickup and release entirely mechanically from the same motor shaft
Analysis: dynamic position-velocity-acceleration (PVA) analysis of the leg four-bar linkage, validated to within 0.9% power balance
CAD & Documentation: full Fusion 360 master assembly, eleven ASME Y14.5M-2018 engineering drawings, BOM, and expense report

Top-down view of the assembled walker — Top-down view showing the symmetric six-leg layout and central drivetrain.

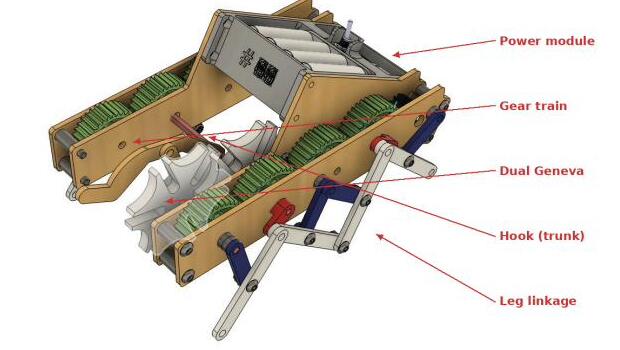

Labeled isometric CAD view — Isometric CAD view with labeled subsystems: power module, gear train, dual Geneva, hook (trunk), and leg linkages.

Design Highlight — Dual Geneva Drive

The central challenge was coordinating locomotion with payload pickup and release from a single motor with no electronic sequencing. A Geneva drive converts continuous rotation into intermittent, indexed motion — exactly what is needed to lock the hook arm in the pick-up and release positions while the legs keep walking.

We chose two Geneva mechanisms instead of one for three concrete reasons: peak hook acceleration and jerk are cut by approximately 50% because the load is split across two simultaneous pin-slot contacts; wear is shared across both star wheels, roughly doubling service life; and the two dwell windows can be tuned independently to dial in precise pickup and release timing. The trade-off is more parts and tighter alignment tolerances — a cost we judged well worth the reliability gain.

Design Evolution:

Single → Dual Geneva: the first iteration used a single Geneva; after computing peak indexing accelerations analytically we added a second star wheel to halve the peak loads and smooth the indexing profile
Leg phasing validation: one four-bar leg was analysed and tested in isolation before integrating all six legs at 120° phase offsets to confirm static stability was maintained throughout the full crank cycle
Drift diagnosis: initial 100-inch test runs showed a consistent leftward drift; root-cause analysis identified an off-centre battery pack shifting the lateral centre of mass; re-centring the battery on the chassis centreline reduced residual drift to under 5 cm over the full course

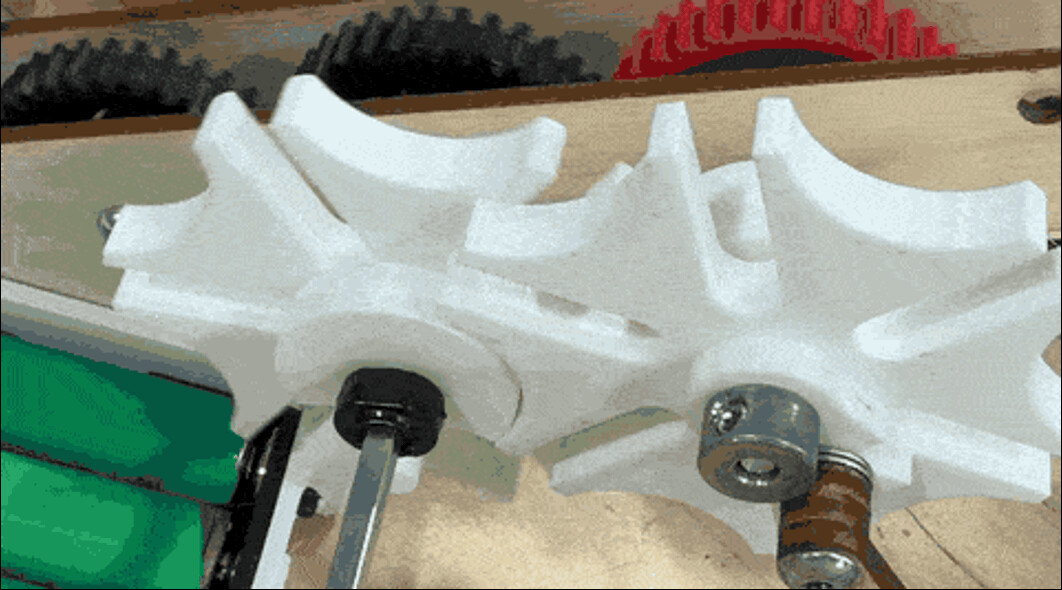

Close-up of the dual Geneva drive mechanism — Detail of the dual Geneva drive: two star wheels index the hook arm, with the red gear train and green motor visible behind.

Analysis & Performance

Dynamic Force Analysis:

Peak motor torque: 12.3 mN·m (occurring at −20° crank angle)
Peak joint force: 0.65 N
Peak motor power: 0.36 W — within rated output throughout the full cycle
Power balance validation: input vs. output power balanced to within 0.9%, confirming the kinematic and dynamic model

Measured Performance:

Course speed: traversed the 100-inch (2.54 m) course in ~15.5 s → 16.4 cm/s average; predicted speed was ~20 cm/s (≈18% gap explained by foot–ground friction excluded from the model, NiMH voltage sag under load, and early-stroke foot slippage)

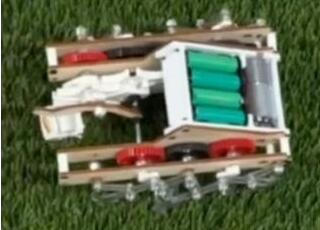

Terrain capability: successfully handled grass, pebbles, hills, and ramp terrains with reliable payload pickup and release on every run

Required motor torque vs. crank angle, peaking at ≈12.3 mN·m near −20°.

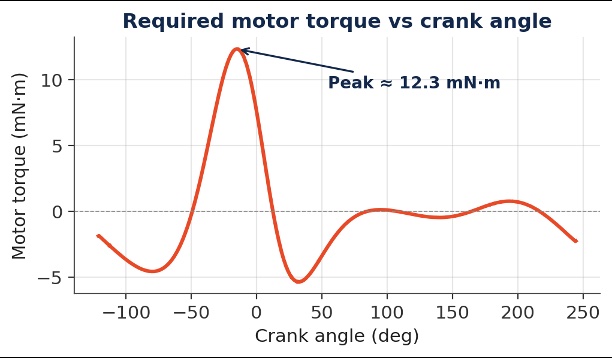

Joint reaction forces over one gait cycle; peak of 0.65 N at the crank-ground pivot.

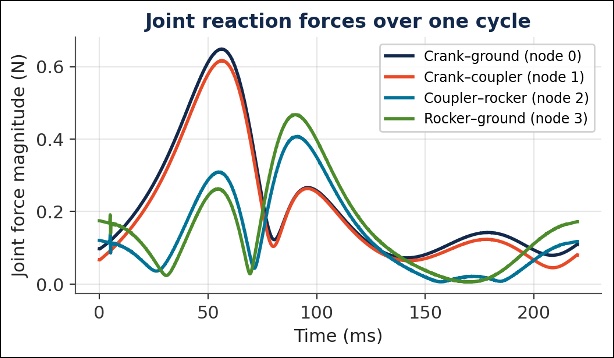

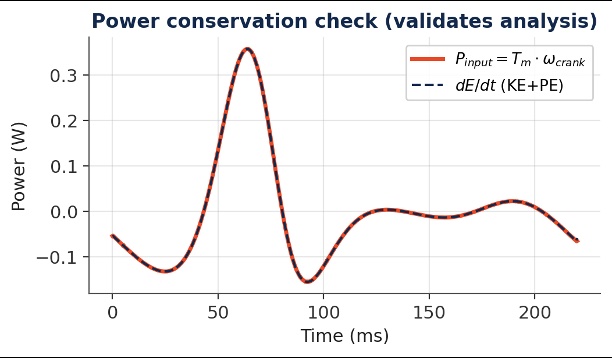

Power-conservation check plot — Power-conservation check: motor input power matches the rate of energy change, validating the model to within 0.9%.

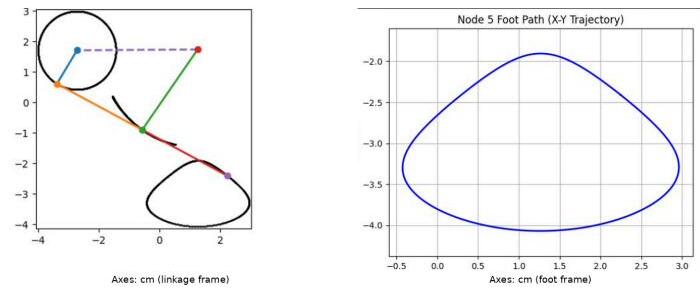

Four-bar leg linkage geometry and foot trajectory — Four-bar leg linkage geometry and the resulting closed-loop foot trajectory from the kinematic analysis.

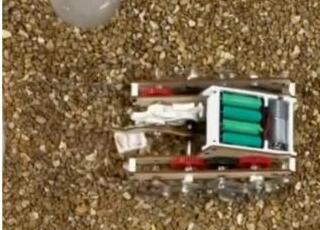

Walker traversing pebbles terrain — Pebbles

Relevance

Dawnstar II demonstrates a concentrated set of mechanical engineering competencies applied under real course constraints:

Single-actuator mechanical coordination: timing two distinct machine events (locomotion and payload handling) from one shaft, with zero electronics, shows mastery of mechanism synthesis and sequencing
Kinematic & dynamic analysis: the PVA study and 0.9% power-balance validation demonstrate the ability to build and verify analytical models before cutting parts
Design-for-manufacture: all structural parts are either laser-cut plywood or FDM-printed, keeping the BOM under $42 while meeting every dimensional and functional spec
Iterative prototyping and root-cause debugging: the drift diagnosis (off-centre battery → re-centred, residual <5 cm) exemplifies structured troubleshooting under a real test condition
Clear creative communication: the wildlife-documentary theme unified the team's design language and made the engineering decisions legible to a non-technical audience

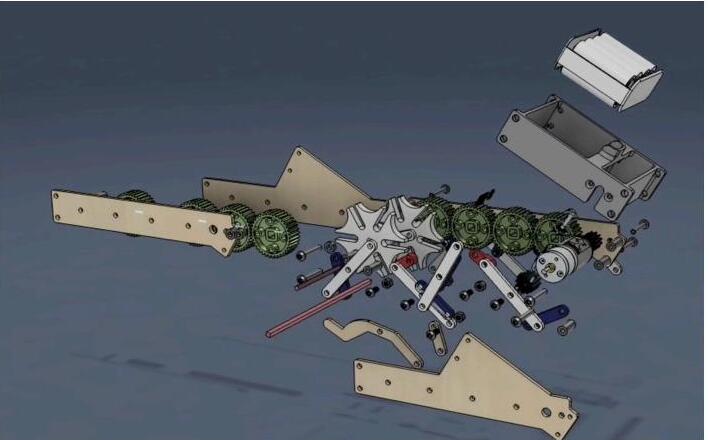

Exploded CAD assembly of the Dawnstar II walker — Exploded assembly view generated in Fusion 360 — chassis plates, gear train, dual Geneva drive, leg linkages, hook arm, and modular power unit.
